Hinge structure and installation

Many people buy a cabinet hinge, do not know how to install, just ask the device master to install, do not have to be so troublesome, today five parts manufacturers tell us about the hinge structure, and the way the hinges are connected, so that we can start by ourselves Easy to get the hinge device.

Under what circumstances is the full cover, half cover and coverless hinge used?

These three-dimensional adjustment hinges according to the specific device orientation of the door panel：

1.If it is the inner door, use the hinge without cover.

2. If it is a multi-door side-by-side device and the external door is a half-cover.

3. If it is two doors and it is external, use the full cover.

Cabinet hinge device process

When the three-dimensional hinge of the cabinet is in the device, it is necessary to confirm the dimensions of the cabinet door. After confirming the dimensions of the cabinet door, we can confirm the small margin between the cabinet doors of the cabinet, and the small margin of the cabinet door is The type of hinge is used to confirm (the hinge cup margin and the cabinet door thickness to select the value). This is generally indicated in the cabinet hinge device clarification book, we can refer to confirm the value.

After confirming the value of the three-dimensional conditioning hinge of the cabinet, we will use the device measuring board or the carpenter pencil to draw the line when the hinge is connected (the general drilling margin is about 5mm), then the pistol drill or the carpenter hole opener. The hole of the hinge cup device having a width of about 3-5 mm is used on the cabinet door panel, and the depth of the drilling hole is generally about 12 mm.

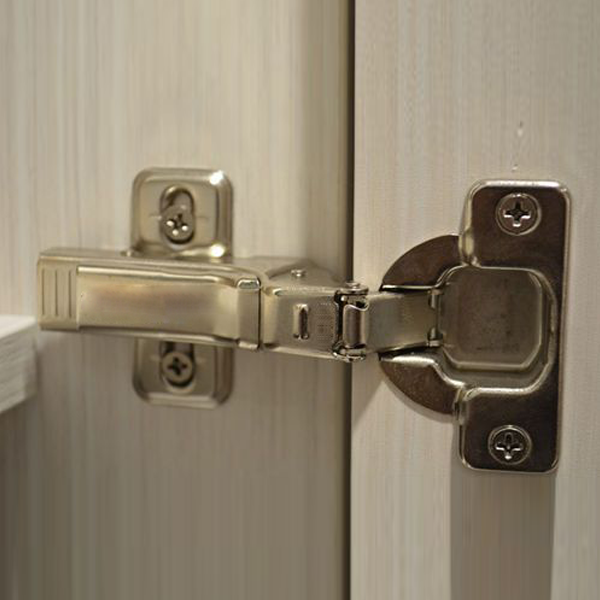

Step 3: We put the hinge into the hinge hole of the cabinet door, and then fix the hinge cup with the self-tapping screws. After the hinge is inserted into the hole of the cabinet door, open the hinge and then align it. On the side panel, then we use the self-tapping screws to fix the base of the hinge.
